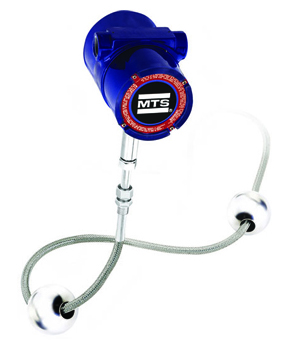

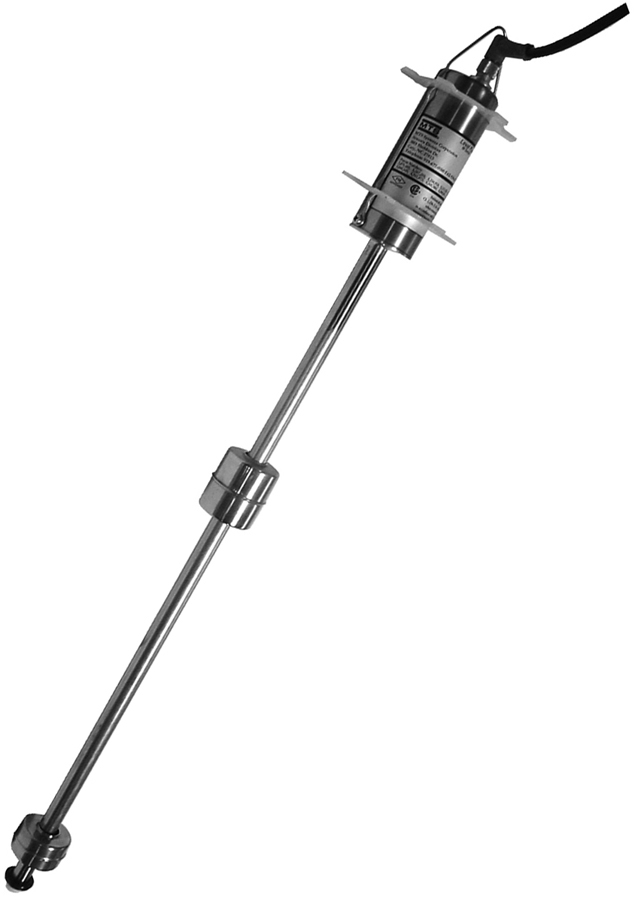

MTS Temposonics® USTD II liquid level sensors

Level Plus liquid level transmitters utilize the inherent advantages of magnetostrictive technology to provide the product level, interface level, and temperature measurement of a tank from one process opening. Accurately measuring multiple process variables from one opening lowers the installed costs of adding feedback to a storage tank or process vessel.
MTS Liquid Level Sensors
  • Continous absolute level gauging
  • Gauge order length 740 mm to 3800 mm (29 in. to 149 in.) in various length
  • Only one probe for temperature, product and water levels
  • Output: EIA RS 485 Interface
  • 2-wire multidrop network
  • Non-linearity 0,025%
  • Repeatability 0,001%
  • Intrinsically safe
  • ATEX safety approvals for zones 0 and 1
  • No recalibration needed

Kontakt Hydex vedrørende MTS Temposonics® USTD II liquid level sensors

Type    Magnetostrictive position sensor
Output DDA
Design Rigid
Parameter Level / Interface / Temperature
Measuring range 737-7620 mm
Linearity 0,025 % F.S.
Approval PTB/ATEX/FM
For mer informasjon Klikk her --- Datablad --- Produktoversikt
