PCB Piezotronics 3-component quartz force rings and links

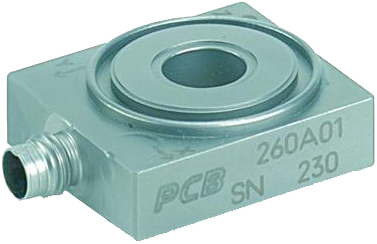

Model 260A01
TRIAX ICP® force ring,
1000 lb (Fz)/500 lb (Fx,y)
1 x 4-pin

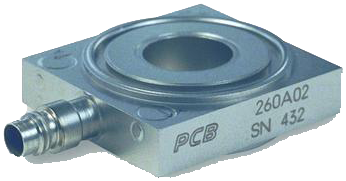

Model 260A02
TRIAX ICP® force ring,
1000 lb (Fz)/1000 lb (Fx,y)
1 x 4-pin

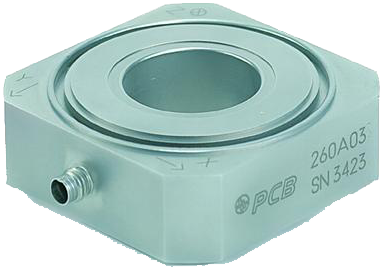

Model 260A03
TRIAX ICP® force ring,
10000 lb (Fz)/4000 lb (Fx,y)
1 x 4-pin

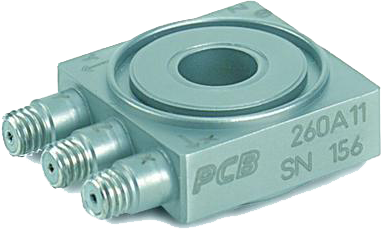

Model 260A11
TRIAX force ring,
1000 lb (Fz)/500 lb (Fx,y)
3 x 10-32 Coaxial
Model 260A12
TRIAX force ring,
1000 lb (Fz)/1000 lb (Fx,y)
3 x 10-32 Coaxial

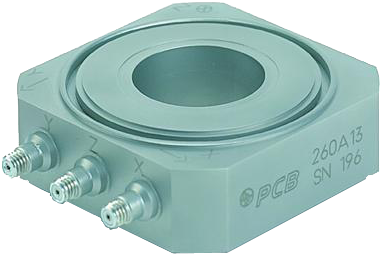

Model 260A13
TRIAX force ring,
10000 lb (Fz)/4000 lb (Fx,y)
3 x 10-32 Coaxial

Model 261A01
TRIAX ICP® force link,
1000 lb (Fz)/500 lb (Fx,y)
1 x 4-pin

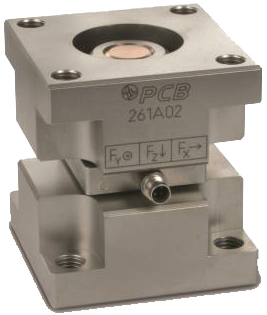

Model 261A02
TRIAX ICP® force link,
1000 lb (Fz)/1000 lb (Fx,y)
1 x 4-pin

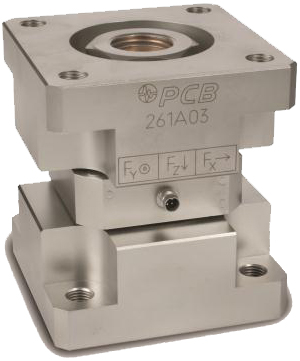

Model 261A03
TRIAX ICP® force link,
10000 lb (Fz)/4000 lb (Fx,y)
1 x 4-pin

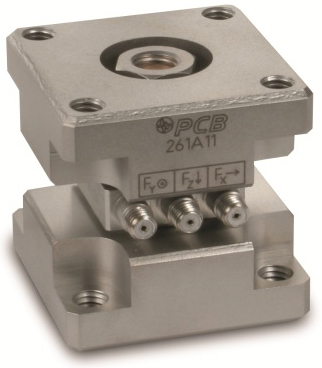

Model 261A11
TRIAX force link,
1000 lb (Fz)/500 lb (Fx,y)
3 x 10-32 Coaxial

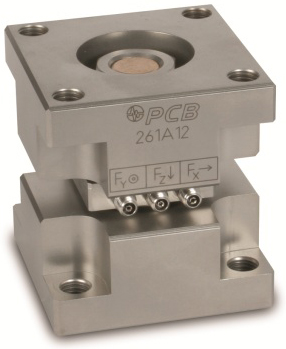

Model 261A12
TRIAX force link,
1000 lb (Fz)/1000 lb (Fx,y)
3 x 10-32 Coaxial

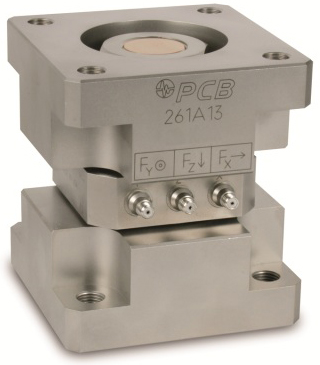

Model 261A13
TRIAX force link,
10000 lb (Fz)/4000 lb (Fx,y)
3 x 10-32 Coaxial

Applications
Force rings Force links
• Force Limited Vibration Testing
• Cutting Tool Forces
• Force Dynamometer
• Engine Mount Analysis
• Biomechanics
• Modal analysis
                          • Impact Testing
• Biomechanics
• Force Plates
• Force-limited Vibration
• Vehicle Dynamics
• Cutting Tool Force Monitoring
