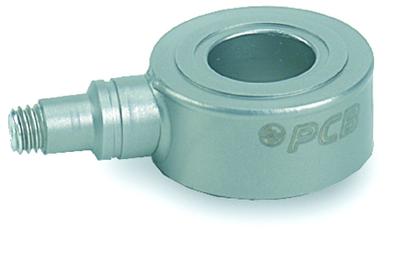

PCB Piezotronics model 202B quartz ICP® force ring

PCB Piezotronics quartz ICP® force rings
  • ICP® quartz force ring, 10k lb comp., 0.5 mV/lb
  • Sensitivity: (±15%) 0.50 mV/lb (112.4 mV/kN)
  • Low Frequency Response: (-5%) 0.0003 Hz
  • Upper Frequency Limit: 60000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)

  • Application
    - Crimping, Stamping, & Press Monitoring
    - Machinery Mount Forces
    - Mechanical Impedance Testing
    - Material Testing
    - Tablet & Punch Presses
    - Roll Nip Profile
    - Balancing
    - Machinery Process Monitoring
    - Stamping & Forming
    - Force Limited Vibration Testing
