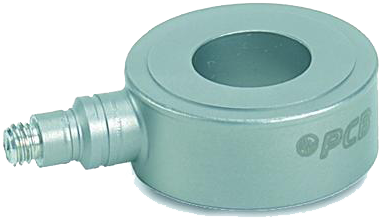

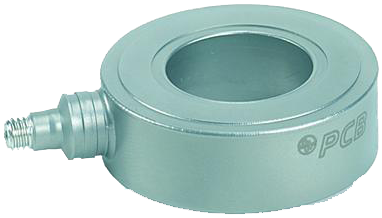

PCB Piezotronics quartz ICP® force rings

Model 201B01
ICP®, 10 lb com
 500 mV/lb
Model 201B02
ICP®, 100 lb comp
50 mV/lb
Model 201B03
ICP®, 500 lb comp
10 mV/lb

Model 201B04
ICP®, 1.000 lb comp
5 mV/lb
Model 201B05
ICP®, 5.000 lb comp
1 mV/lb
Model 202B
ICP®, 10.000 lb comp
0,5 mV/lb

Model 203B
ICP®, 20.000 lb comp
0,25 mV/lb
Model 204C
ICP®, 40.000 lb comp
0,12 mV/lb
Model 205C
ICP®, 60.000 lb comp
0,08 mV/lb

Model 206C
ICP®, 80.000 lb comp
0,06 mV/lb
Model 207C
ICP®, 100.000 lb comp
0,05 mV/lb
Model 211B
5.000 lb comp,
charge output
18 pC/lb

Model 212B
10.000 lb comp,
charge output
18 pC/lb
Model 213B
20.000 lb comp,
charge output
18 pC/lb
Model 214B
40.000 lb comp,
charge output
18 pC/lb

Model 215B
60.000 lb comp,
charge output
18 pC/lb
Model 216B
80.000 lb comp,
charge output
18 pC/lb
Model 217B
100.000 lb comp,
charge output
17 pC/lb

Applications
• Crimping, Stamping, & Press Monitoring
• Machinery Mount Forces
• Mechanical Impedance Testing
• Material Testing
• Tablet & Punch Presses
                             • Roll Nip Profile
• Balancing
• Machinery Process Monitoring
• Stamping & Forming
• Force Limited Vibration Testing
