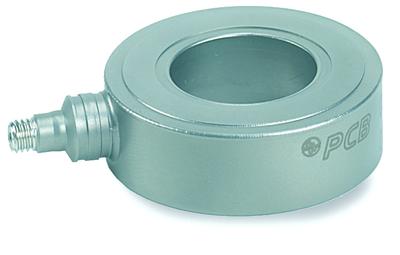

PCB Piezotronics model 205C quartz ICP® force ring

PCB Piezotronics quartz ICP® force rings
  • ICP® quartz force ring, 60k lb comp., 0.08 mV/lb
  • Sensitivity: (±15%) 0.08 mV/lb (17.98 mV/kN)
  • Low Frequency Response: 0.0003 Hz
  • Upper Frequency Limit: 50000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)

  • Application
    - Crimping, Stamping, & Press Monitoring
    - Machinery Mount Forces
    - Mechanical Impedance Testing
    - Material Testing
    - Tablet & Punch Presses
    - Roll Nip Profile
    - Balancing
    - Machinery Process Monitoring
    - Stamping & Forming
    - Force Limited Vibration Testing



For mer informasjon      Klikk her --- Datablad --- Tegninger --- Oversikt

Kontakt Hydex vedrørende PCB Piezotronics model 205C quartz ICP® force ring
