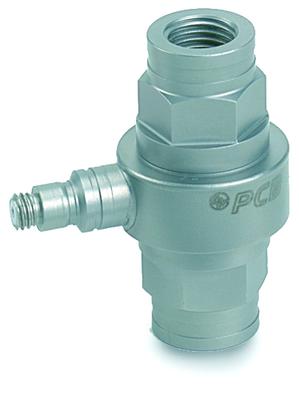

PCB Piezotronics model 222B quartz ICP® force links

PCB Piezotronics quartz ICP® force links
  • Link ICP® quartz force sensor, 6k lb comp., 2500 lb tension, 0.9 mV/lb
  • Sensitivity: (±15%) 0.90 mV/lb (202.34 mV/kN)
  • Low Frequency Response: (-5%) 0.0003 Hz
  • Upper Frequency Limit: 12000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 3/8 - 24 Female

  • Application
    - Tensile Testing
    - Press Monitoring
    - Material Testing
    - Machine Process Monitoring
    - Tension & Compression
    - Push Rod Testing
    - Repetitive Operations
    - Press Force Monitoring



For mer informasjon      Klikk her --- Datablad --- Tegninger --- Oversikt

Kontakt Hydex vedrørende PCB Piezotronics model 222B quartz ICP® force links
